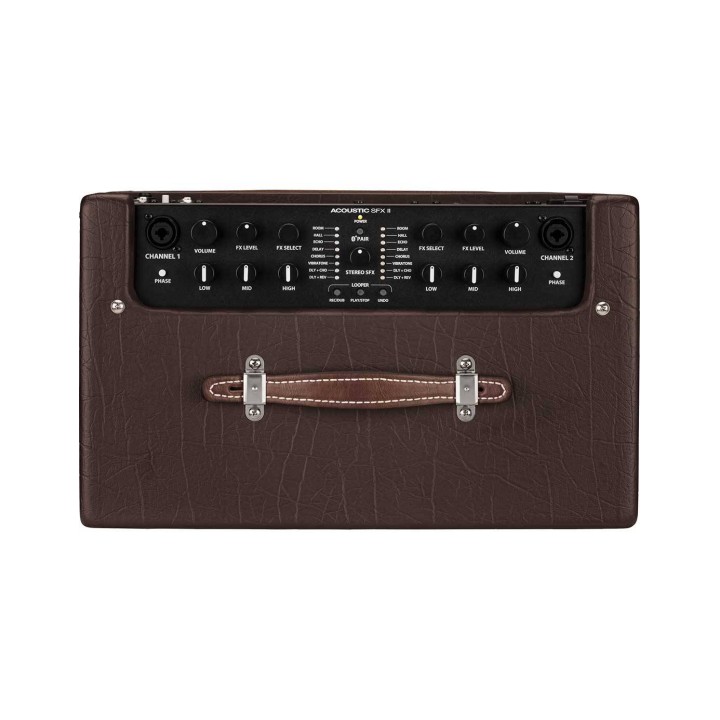

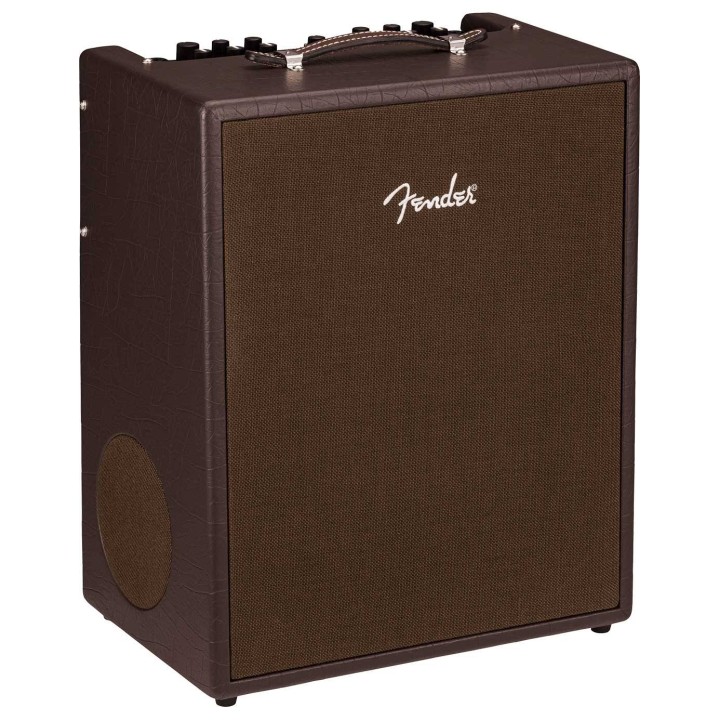

Acoustic SFX II, Dark Brown

Specs
Accessories
Footswitch
4-Button MGT-4: Effects Select, Looper Control, Tap and Tuner (Use With Included Magnetic Overlay Label), P/N: 0994071000 (Footswitch Not Included)

Electronics
Auxiliary Input
1/8 in (3.5 mm) Stereo

Connection Type
1/4"

Connectivity
Bluetooth® and USB

Control Panel
Channels 1 and 2: Volume, Low EQ, Mid EQ, High EQ, Effects Level, Effects Select, Phase Switch (Separate Controls For Each Channel); Looper Controls: Rec/Dub, Play/Stop, Undo; Bluetooth® Pair Button

Effects
Each Channel Has Room Reverb, Hall Reverb, Echo, Delay, Chorus, Vibratone, Delay+Chorus, and Delay+Reverb; All Effects Are Enhanced By SFX Circuitry and Side-Firing Speaker

Inputs
Two (2) Balanced 1/4" - XLR Combination

Looper
90-Second Looper with Record/Dub, Play/Stop, and Undo Buttons

Output
Two XLR Line Outputs Selectable For Channel 1/2, Stereo/Mono, and Ground Lift; One 3.5mm Stereo Headphone Output; USB Jack For Recording

Voltage
120V

VoltageRequirements
100-240 VAC, 50-60 Hz

Wattage
2 x 100 Watts

General
Amplifier Type
Digital

Color
Dark Brown

Product Name
Acoustic SFX II, 120V

Series
Acoustic Series

Hardware
Amplifier Covering
Dark Brown Textured Vinyl

Cabinet Material
Lightweight Plywood

Control Knobs
Black Lightly Texture Plastic with Easy-To-Read White Indicators

Grille Cloth
Dark Brown Woven Cloth with Embroidered Logo

Handle
Leather Strap

Rear Control Panel
Power, Mono/Stereo Select, Ground Lift, Channels 1 and 2 Combined/Separate Output Select, Reset, Firmware Update

Measurements
Product Depth
10.2" (25.9 cm)

Product Height
19.4" (49.2 cm)

Product Height/Length
19.4" (49.2 cm)

Product Weight
22 lbs. (9.98 kg)

Product Width
15.7" (39.9 cm)

Refinement Weight
25-under

Speakers
Speakers
One 8" Low-Frequency Driver, One High Frequency Compression Driver Horn and One 6.5" Side-Radiating Speaker

Total Impedance
4 ohms

Tweeter
One - Hi-Fi Compression Tweeter
